Commerce Server 2007 and Operational Monitoring

Sep 16, 2007 | 5 minutes read

Operational monitoring (OM) is a practice that is sorely underused, in my opinion. OM is a performance and event monitoring practice that allows you to respond to errors and gain insight into machines on your network. Microsoft has two flagship products for operational monitoring: Microsoft Operations Manager (MOM) 2005 and System Center Operations Manager (SCOM) 2007. Through MOM and SCOM you can monitor your Microsoft server products, such as SQL Server, Web Sites, and even Commerce Server 2007.

There are a number of benefits to using OM, including:

  • Receive notification of critical errors and warnings
  • Automatically respond to errors and warnings
  • Gain insight into performance and trends to preempt future problems

Both MOM and SCOM use an agent (a piece of software installed on the monitored machine) to track the performance and events on monitored machines. The agent watches a number of different sources on the computer, such as the Event Log, and then centralizes this information on the OM server where it is stored in a database. The OM server applies filters and rules, and will notify individuals and/or groups if necessary. Additionally, they can respond to events by running scripts or executables on the monitored machine.

While you can define your own events and thresholds to monitor your machines, you can also take advantage of pre-built management packs. These management packs are designed by the corresponding product team (e.g. the Commerce Server 2007 MOM pack is designed by the Commerce Server team) so that the monitored events and defined thresholds are most appropriate for the product.

The process for installing MOM 2005 with Service Pack 1 is pretty straightforward (especially if you’re installing it on one machine). Take a look at the following documentation for detailed steps:

There are four steps involved in installing MOM 2005:

  1. Installing SQL Server and MOM 2005
  2. Discovering computers and deploying agents
  3. Install MOM 2005 reporting (optional)
  4. Import management packs

I suggest that, before you install MOM 2005, you take advantage of the “Check Prerequisites” tool to make sure that you’ve properly configured your server.

Check Prerequisites for MOM 2005

If you have problems installing agents on step two, take a look at the following KB article: ttp:// Turns out I had a DNS issue on one of the machines I wanted push an agent onto; after resolving the DNS issue I had no problems.

Once you have successfully installed and configured MOM 2005 (steps 1 through 3) you are ready to import various management packs.

You must first download the MOM 2005 pack for Commerce Server 2007. When you run the executable you must specify the location to place the files.

Commerce Server 2007 MOM Pack 2005

I suggest you use the default location for management packs: C:Program FilesMicrosoft Operations Manager 2005Management Packs. This way, when you run the import from the MOM 2005 Administrator Console, you won’t have to change the default location.

To import the management pack you must do the following:

  1. Open the MOM 2005 Administrator Console

  2. Browse to Microsoft Operations Manager () –> Management Packs

  3. Right-click Management Packs and select Import/Export Management Pack.

  4. Choose the Import a management pack, and click Next.

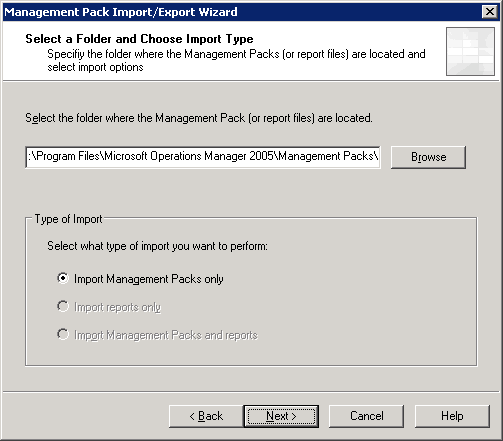

  5. Lave the default location for the management packs, which is where you installed the Commerce Server 2007 MOM Pack. Click Next to continue.
    Management Pack Import/Export Wizard

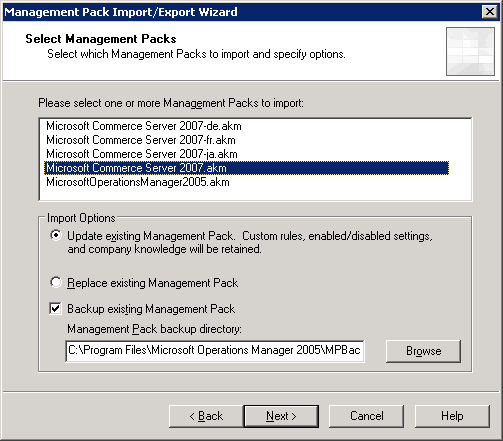

  6. Select the Microsoft Commerce Server 2007.akm management pack to import. Click Next to continue. Management Pack Import/Export Wizard

  7. On the summary page, click Finish.

Once you have installed the management pack you must then specify your Commerce Server 2007 servers. To do this, you must do the following.

  1. Open the MOM 2005 Administrator Console
  2. Browse to Microsoft Operations Manager () –> Management Packs –> Computer Groups –> Microsoft Commerce Server 2007.
  3. Right-click Microsoft Commerce Server 2007 and choose click Properties.
  4. Select the Included Computers tab and click Add.
  5. Select the Commerce Server computers you wish to monitor, and click OK.

Now your Commerce Server 2007 servers are being monitored by MOM 2005.

I would say that the “out-of-the-box” settings for the MOM pack are okay about 90% of the time. The key is to get a baseline for your environments and potentially fine tune the settings based on your findings.

According to the CS product team there is no native SCOM 2007 pack planned at this time. However, the MOM 2005 pack is supposed to work with SCOM 2007. While I haven’t tried this myself, I’ve been told by multiple sources that it should work and that this is the supported model.

If I get the opportunity to test this I’ll be sure to update this post.

In addition to the Commerce Server 2007 MOM Pack you may also want to use the following MOM packs:

While the Commerce Server 2007 MOM Pack tracks the health of your Commerce Server environment, it doesn’t really monitor the health of your Web Site (i.e. IIS). Additionally, there are events and thresholds in the SQL Server pack that are also worthwhile.

At the very least, make sure you review the following white paper: Microsoft Commerce Server 2007 MOM Pack White Paper.

Also, here are some good blogs/sites to track:

MOM 2005 and SCOM 2007 are great resources and you should definitely take the time to learn more about them.

I hope this helps!
